884

Floorsocket 884PINTA

Limente floor sockets offer a stylish and timeless solution for distributing electricity, data, and antenna signals in all kinds of locations. Floor sockets are particularly convenient in car dealerships, supermarkets, stores, offices, commercial spaces, ships, and even in homes around kitchen islands. The washable and drive-over sockets are especially suitable for larger open spaces such as hypermarkets, car dealerships, cafes, and restaurant customer areas. Sockets intended for dry indoor installations are designed for offices and meeting or office spaces.

All Limente floor sockets are made with either aluminum or stainless steel frames, and their covers can be metal or the same material as the floor (carpet, wood, stone, laminate, parquet, etc.)

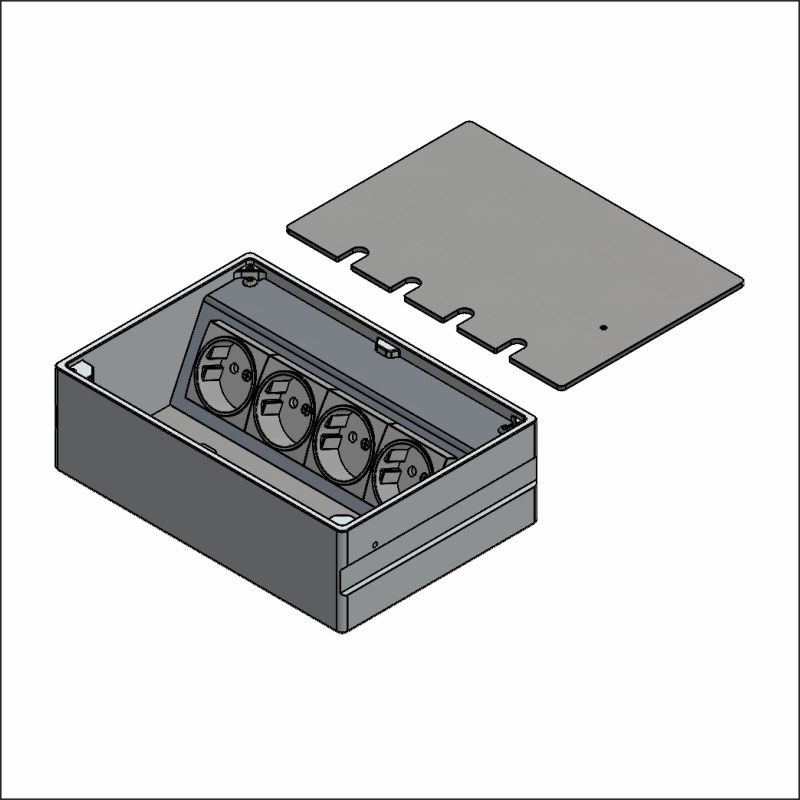

The 884PINTA series sockets are floor sockets equipped with a cover, onto which a surface material, such as wood or stone, is intended to be glued depending on the flooring material, to create a custom cover.

Socket content options

A socket can be equipped as follows (other connectors are available on special order):

- with four Shuko sockets (240V, 16A)

- with three Shuko sockets and one dual RJ45 connector (CAT6A)

- with three Shuko sockets and one TV-SAT-R connector (SAT 950-2400 MHz)

- with two Shuko sockets, one dual RJ45 connector (CAT6A) and one TV-SAT-R connector (SAT 950-2400 MHz)

Installation and Electrical Connection

The socket is installed as part of the floor by setting it into the concrete floor. For this purpose, a separately sold place holder (product number 680823) can be used, which reserves the necessary space in the casting. Once the floor is ready, the place holder is removed, and the socket is placed in its stead.

The socket has four 25mm entry holes for the supply cable. The socket's IP rating of IP20 requires that the entries use sleeve seals with at least an IP20 rating or are otherwise sealed tightly.
