Breakf.cabinet set IR-DIM 1x55cm

An extremely low and efficient profile fixture with an IR switch

LIMENTE PROFIL IR-DIM is a part of LIMENTE collection. The LIMENTE collection provides the best quality of light in technical features, such as efficiency and color rendering, and maximizes the lifespan of the product. PROFIL PROFIL IR-DIM is a simple and cost-efficient choice to light up your breakfast cabinet! The led profile is available in six different standard lengths. The fixture has an IP44 classification, which makes it possible to be installed also under a drying cabinet. Due to the excellent light output, the profile fixtures can be placed even 60-80cm apart! You’ll receive excellent light on your cooktop, when the fixtures are placed on both sides of the cooker hood.
LIMENTE PROFIL IR-DIM has a perfect color rendering (CRI>90). The fixture has a light output of 758 lm/m and a color temperature of 4000K. Due to the excellent technical values, our models reproduce natural colors optimally, which really makes colors come alive! The products in our LIMENTE collection are all granted with a three-year additional warranty in addition to our two-year warranty granted for all our products.
PROFIL PROFIL IR-DIM includes an integrated IR-DIM switch. The light is activated with a wave of a hand. The fixture includes a matte protective glass diffuser, which makes the light even and continuous and makes the light a bit warmer in light color. All technical values are given to the fixture including the diffuser.

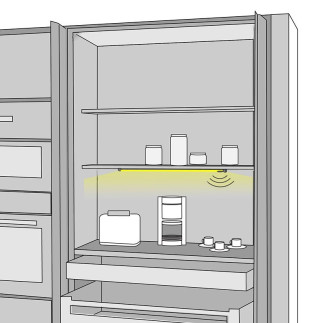

LIMENTE PROFIL IR-DIM is an excellent choice for breakfast cabinets and other kitchen workspaces as working light. The end result is always spectacular!

Lighting control

LIMENTE PROFIL IR-DIM is not dimmable with separate dimmers. The fixture has an integrated on/off switch and dimmer. The on/off switch is activated with a wave of a hand. For dimming, hold your hand over the sensor to adjust the brightness between 100% and 5%. Please note that the lights will always turn on at full 100% brightness.

Easy Installation

LIMENTE PROFIL IR-DIM is fast and easy to install with the installation parts included.

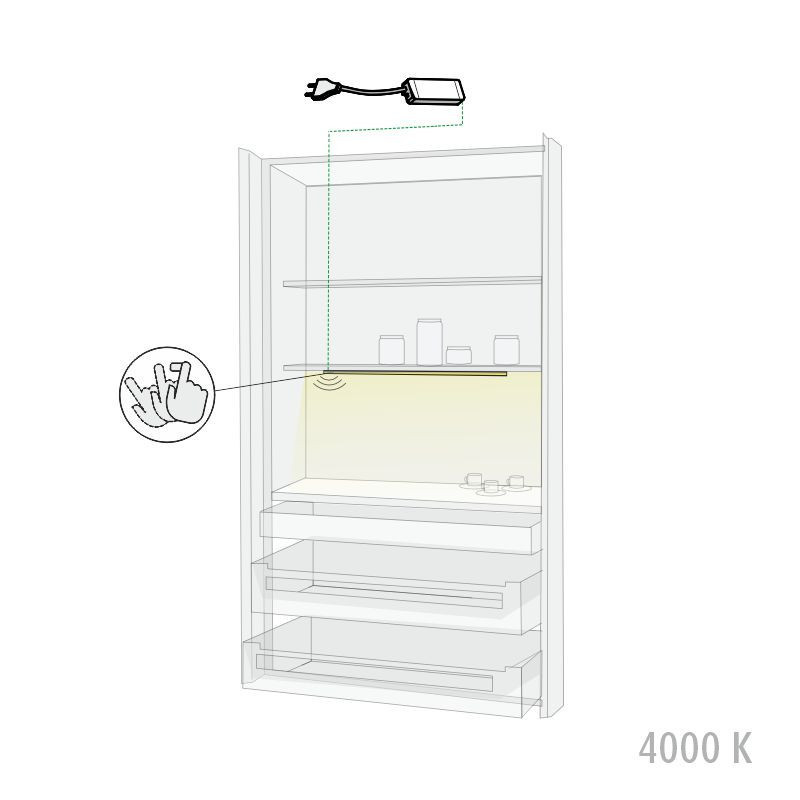

The power supply cable is put in place (e.g. hidden behind a cabinet) so that the male connector comes close to the power supply and the female connector comes near the PROFIL IR-DIM fixture. The fixtures can be installed up to 60-80cm apart. The power supply cable can be placed to come out either from left or right of the fixture. You can hide all the wiring inside a cable channel included, which gives a stylish finishing touch to your lighting design.

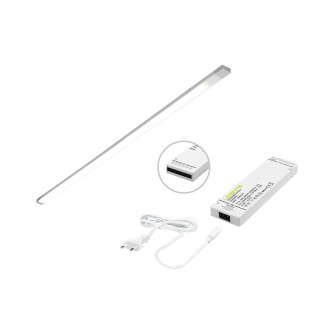

The fixture includes a cable channel for the power supply cable. The channel can be shortened to a desired length (the led profile is available in five standard lengths, which cannot be shortened). Both the cable channel and the PROFIL IR-DIM fixture are attached with the attachment brackets included. Finally, connect the power supply cable to the light fixture and to the power supply. All electrical connections are done with quick connectors.

There is a 5cm + 300cm long power cord at the end of PROFIL IR-DIM. An extension cord (3m, no. 681588) can be ordered, in case a longer power cord is needed. Extension cords can be fitted with a maximum on 1 pcs of fixtures, with a maximum cord length of up to 6m. Please note the adequate length of the cord and the maximum load (W) of the power supply.

Please notice, Power supply is included to the set.
