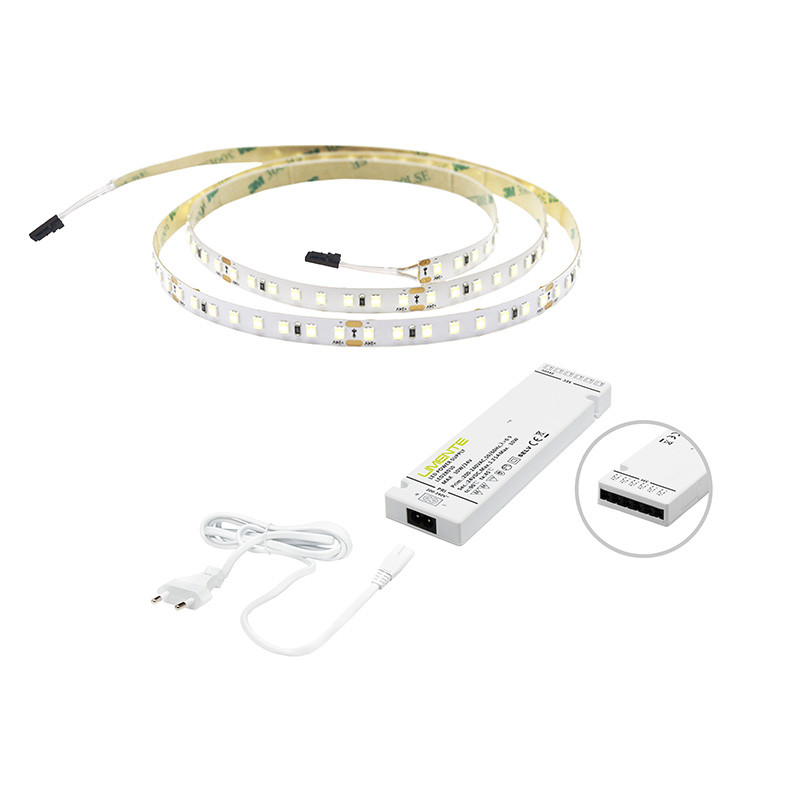

PROCOM led-ribbon set 4000K, 3m

A versatile LED strip and driver

Efficient, cuttable LED strip, where the LEDs are very close to each other (140 LEDs / meters). The ribbon is used in kitchen lighting as an indirect light, for example behind the mirrors, in plinths, in furniture, in ceilings, and anywhere where the lamp needs to be as invisible as possible. Especially when installed in a LIMENTE LIGHTING PROFILE, the light is pleasantly continuous and even.

High-quality LEDs are used as standard, with a color rendering index of CRI>80, luminous efficacy of 130 lm/W, luminous flux of 1300 lm/m and a color temperature of 4000 K (minor color temperature variations may occur between production batches). The strip comes standard with a 5 cm + 300 cm long cable at both ends. If this is not sufficient, you can order an extension cable (3 m), product number 681588. A maximum of 1 extension cable can be connected per fixture's cable, making the maximum cable length up to six meters. The power supply cable at both ends allows the utilization of the LED strip in two sections. This way, unnecessary waste pieces are avoided, and it also enables the installation of the strip in two different directions from the power source.

The LED strip must be used with a suitable 24 V power supply. Compatible options are mentioned in connection with the products. Aluminum profiles and LED strips are also available separately.

Dimming and lightcontrol

By adjusting the lights, it is easy to create appropriate lighting for different occasions. By dimming LIMENTE LED-strip you can change your home’s lighting from efficient and bright to dim and cosy. You can use the same switch to adjust all the LIMENTE lights in the room, including various ceiling-, panel- and profile lights. The lamps adjust smoothly at the same time, while simultaneously changing the ambience of the space.

LIMENTE PRO LED-strip is dimmable either with LIMENTE SMART CLASSIC, LUXUS ja GREENLINE series 24V dimmer (no. 640540) and wireless wall switches (no. 640541, 640542, 640543, 640544, 640546 and 640547). The dimmer is installed between the power supply and the fixture. The dimmer includes a similar manifold to the one included in the power supply. You can connect up to 6 LIMENTE lights to one dimmer, as long as the maximum load (W) of the power supply is not exceeded.

The LED-strip is also dimmable with a Dali driver (LEDDALI100). The driver is controlled by either a 240 V Dali controller or a push button switch, utilizing the "Push Dim" function.

Installation

Installing the LIMENTE PROCOM strip is quick and easy.

The power supply cable, which is often hidden (e.g., behind a cabinet), is positioned so that the male connector is near the power supply and the female connector is near the LED strip. Remove the protective film from the adhesive tape on the LED strip and press the strip into place. Finally, connect the power supply cable to both the LED strip and the power supply using the quick connectors.

LIMENTE PROCOM LED strips can be shortened at intervals of approximately 6 cm. Both ends of the LED strips feature a power feed, allowing you to utilize both ends separately if needed. PRO-series LED strips must always be attached to a heat-conductive material, such as the LED lighting profile available as an accessory. This ensures the promised lifespan of the LED strip. The profile also enables installation under a dish-drying rack, for example, and its matte cover (diffuser) makes the light more uniform. In all cases, ensure that the mounting surface is absolutely clean and dry before attaching the LED strip.
